EuroDual Locomotive
…

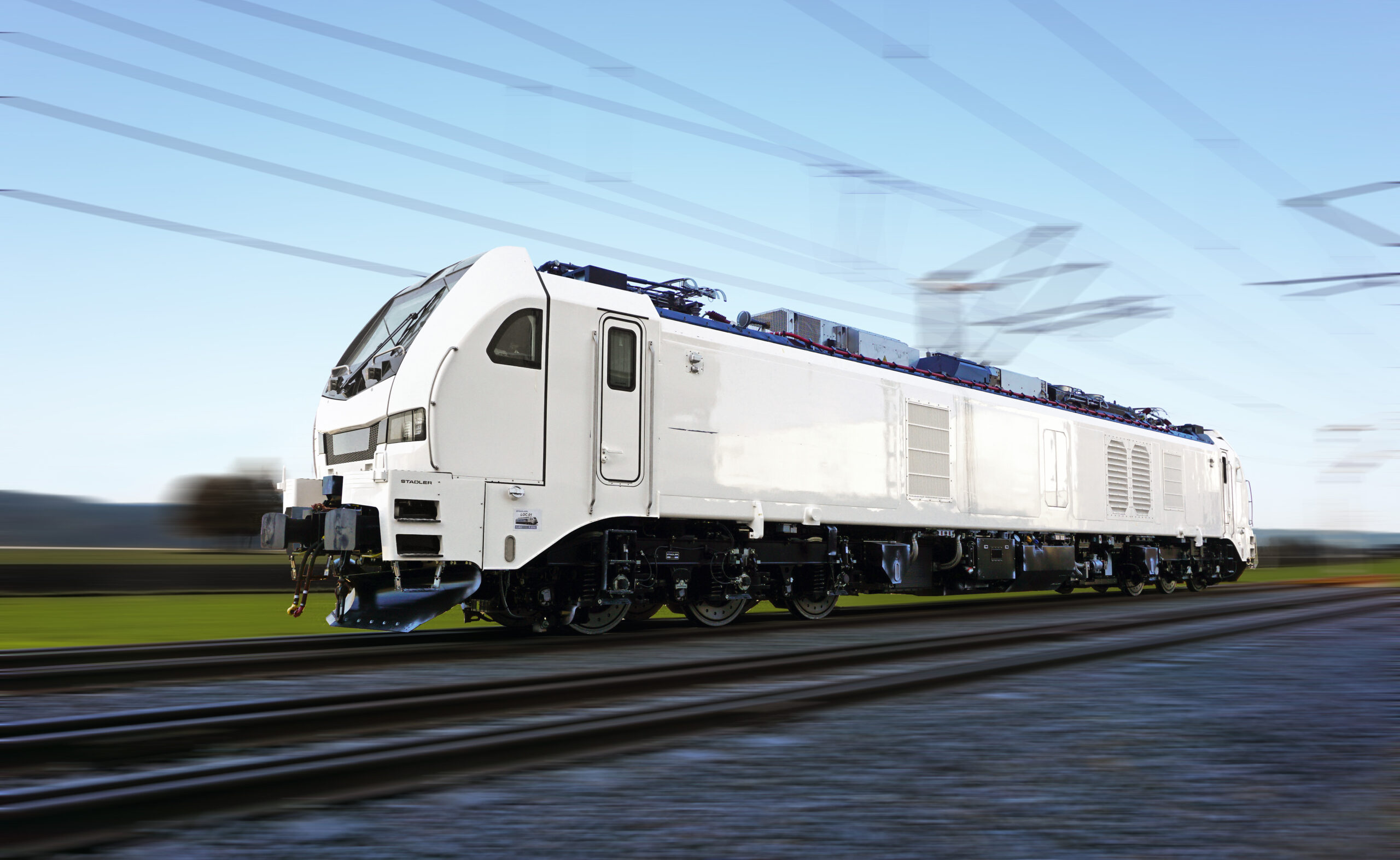

The new six-axle hybrid locomotive is more than just a locomotive for the “last mile” and offers two solutions in one. It can be used on electrified and non-electrified lines. During the journey, it is possible to switch from the electric overhead line to diesel. The EuroDual Germany/Austria and Scandinavia can be used on electrified lines with 15 kV 16.7 Hz and 25 kV 50 Hz, they have an output of 6,150 kW in electric operation. For non-electrified lines, the EuroDual has a powerful diesel engine with 2.8MW output. The locomotives for Scandinavia have a winter package for reliable operation in extreme weather conditions with snow and ice. They are designed for temperatures down to -40 °C.
Depending on the train composition, a single Co’Co’ hybrid locomotive can replace two Bo’Bo’ locomotives in double traction. The state-of-the-art three-axle bogie technology enables less wear and tear on the infrastructure and thus lower track costs.
Technology
- Modern dual locomotive for freight trains
- AC traction system with IGBT, one inverter per axle
- High starting tractive effort thanks to single axle control and best performance in diesel operation
- Extremely low track forces during track guidance (non-self-steering bogie)
- Equipped with ETCS BL3 and PZB for Germany or ATC2 for Scandinavia
Personnel
- Two ergonomically designed driver’s cabs with air conditioning
- High cab comfort and visibility beyond TSI requirements
- Full cab isolation
- Radio remote control for efficient shunting operation
Reliability / Availability / Maintainability / Safety
- Reduced operation costs
- Decreased environmental footprint
- Diesel engine EU 26/2004 Stage IIIB compliant
- Approved according to the latest European legislation
- Modern maintenance system with best service intervals
- Winterization package for locomotives being used in Scandinavia
Vehicle data
| Lokomotive type | Hybrid: Electric / Diesel-electric |
| Track gauge | 1435 mm |
| Axle arrangement | Co’Co’ |
| Electric energy supply | 15 kV 16, 7 Hz und 25 kV 50 Hz |
| Diesel engine | CAT C 175-16, IIIB |
| Diesel engine power | 2800 kW |
| Electric power at wheel rim | 6150 kW |
| Transmission | AC/AC |
| Starting tractive effort | 500 kN |
| Fuel tank | 3500 l |
| Urea tank | 400 l |
| Maximum speed | 120 km/h |
| Brake system | Mechanic: pneumatic Dynamic: regenerative/rheostatic |
| Country configuration | Germany – Austria / Sweden-Norway |
….
